Pioneer UDP-LX800 Ultra HD Blu-ray player review

The Pioneer UDP-LX800 is to Blu-ray players what the Ark of the Covenant
is to flatpack furniture; an imposing, grandiose, over-engineered behemoth boasting leading-edge video processing and audiophile musical chops.

Fully universal, it spins Ultra HD Blu-rays and assorted derivatives, plus SACD and DVD-Audio discs, as well
as regular CD platters. It's the higher-end stablemate
to Pioneer’s UDP-LX500, a model that is similarly substantial, but doesn’t quite match it for refinement.
If you’re after the ultimate in no-compromise disc spinners, then the UDP-LX800 is it.

Formidable springs to mind when it comes to build quality. The deck’s construction, with 1.6mm steel-sheet chassis and noise-deadening aluminium side panels,
even eclipses Panasonic's premium DP-UB9000. At 13.8kg, it's weightier than many
AVRs. Anchoring the flagship are four large isolating feet
with rubber anti-slip pads.

As there are no ventilation holes, the player is whisper-quiet in operation. It isn't a particularly speedy disc-loader though. Thanks in part to its languid spring-damped tray,
it took my copy of Goldfinger 47 seconds to get to its main menu. Still, some things are worth waiting for...

Two-channel ambition

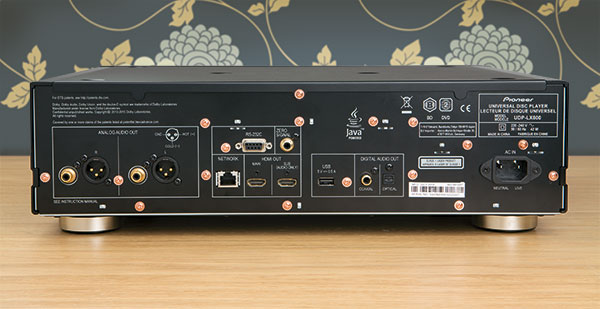

Back-panel connectivity runs to two HDMI outputs (one audio-only); optical and coaxial digital audio outputs;
USB port; Ethernet; RS-232C; and dedicated stereo phonos bolstered by a balanced stereo output for use
with a compatible pre-amp. There’s no multichannel
audio bank, however, which might surprise you. A second USB port is found on the front. Wi-Fi is integrated.

The £2,200 asking price gets you plenty of attention
to detail under the bonnet. A complex six-layered circuit board has been engineered for minimum noise, in order to do justice to the high-speed signal transmission capability of UHD discs.

A three-block layout separates power supply, digital processing and analogue audio; a tried
and tested way to combat electromagnetic interference. The analogue audio circuit itself has a dedicated 'quick-response' power transformer with custom-made capacitors. Pioneer engineers have even embossed the casework of the power transformer and power supply circuit, says the brand, to help combat standing waves within
the player. In short, this is as painstakingly built
a Blu-ray deck as you could hope to find.

Unfortunately, if there was a prize for UI design, this machine definitely wouldn’t win. The home screen is dour and boring, offering just source selection and settings.

The source selector isn’t just for physical media. It’ll also locate suitable media servers when online. Audio file compatibility is extensive, covering MP3, WMA, ALAC, AIFF, WAV and FLAC up to 24-bit/192kHz, and DSD 2.8MHz and 5.6MHz. There’s no native MQA support, but
as Pioneer has been rolling out firmware to its network kit, we live in hope.

While the main menu is almost apologetically simplistic, there is customisation and tuning available. The player offers a quartet of picture presets (Reference, OLED, LCD and Projector) to optimise the HDMI output for display types, with auto detection of SDR and HDR. Out of the box the UDP-LX800 supports Dolby Vision, as well as regular HDR10. There’s no initial love for HDR10+, although Pioneer has announced that a firmware update will introduce support for the format by Spring 2019. This will bring it into line with offerings from Panasonic, and reassure those who had been wavering over a purchase.

Display settings cover everything from 480p to source direct. In addition to colour sub-sampling (variable between 4:4:4, 4:2:2 and 4:2:0), the UDP-LX800 can interpolate native 8-bit discs to 10- or 12-bit depth. Unless you know what you’re display supports, it’s probably best
to leave the player in Auto mode (a rule of thumb that solves many problems).

Much like the Oppo UDP-205 model that it effectively usurps, there’s no streaming content provision. While this is hardly a deal-breaker for products of this calibre, it looks a little bereft without some VOD provision, particularly when compared to the Panasonic DP-UB9000.

Of course, there are other ways to amuse yourself
with the UDP-LX800 besides binge watching Better Call Saul.
The display information screen is a source of continual fascination, not least because you can use it to read HDR10 metadata to reveal the Maximum Frame-Average Light (MaxFALL) and Maximum Content Light Level (MaxCLL)
of 4K discs. This trick lifts the veil on disc mastering, giving a clear indication just how much effort your screen will need to put into tone-mapping HDR content (the surprising answer, in my experience so far, is not that much). Yet this deep playback info is accessed only by holding the Display button on the remote down for an extended period – it’s a bit of an Easter egg approach for something so compelling.

With regular Blu-rays, the same info screen shows basics such as resolution, frame-rate, colour space and colour depth, as well as the audio format and a live bitrate meter.

A feast for the eyes
Image quality with 4K UHD discs is drop-dead gorgeous. Calling up the same titles used to audition Panasonic's DP-UB9000, I was taken aback by the solidity and dimensional realism of its pictures. Pacific Rim: Uprising (Ultra HD Blu-ray) is a feast for the eyes, combining precise Dolby Vision HDR with flawless skin texture and ravishing, nuanced colour. The player eagerly rewards owners of high-grade displays (I auditioned it primarily with a Sony AF9 OLED). Despicable Me 2, another Dolby Vision encode, exhibits sumptuous colour rendering, with tight highlights and crisp detail. The deck puts everything onscreen, without noise and artefacts. Standard Blu-ray performance,
with upscaling handled by the UDP-LX800, is equally outstanding, with fine, unfettered detail and smooth hues.

It’s a matter of conjecture whether the UDP-LX800 is comparable to, or better than, its Panasonic rival when it comes to image quality. Both offer pristine detail.

Under the microscope, differences between the
two players become slightly more apparent, though.
A magnified snapshot of a 4K zone plate chroma
frequency response test reveals a stepped edge to ultra-fine, curved edges on the big Pioneer. The same content on the Panasonic has no such coarse stepping,
and is smoother as a result. But this is a semantic difference. When it comes to what’s seen onscreen,
both are five-star performers.

Listen up!
It's sonically where the UDP-LX800 really stands out.
This player is second to none, with a character that’s refined, musical and detailed.

Its audio design owes much to Pioneer’s PD-70AE SACD/CD player. The two decks share an identical PCB stereo signal path (if it ain’t broke...) and component layout, not to mention the same 32-bit, Parallel Drive ESS ES9026 PRO Sabre DACs.

Direct function can be used to shut down digital audio and video circuits, to better serve high-resolution sound sources and CDs. When using the stereo analogue stage, you can also select one of three DSP filters (Sharp,
Short and Slow) to fine-tune the output to your liking.
Differences here are best described as subtle.

The player does a transformative job with high-grade CD pressings. There’s no metallic edge, no sibilance, not even the vaguest sense of discord. Even the worst excesses
of mass-produced platters are largely tamed.

Ditto for SACD playback. Spinning saxophonist Tommy Smith’s modern jazz outing Blue Smith (Linn Records) is probably the next best thing to being in the recording studio for a live session. The soundstage has tangible girth, and resolution in reserve.

Indeed, the UDP-LX800 is exactly the kind of disc spinner that will have you eagerly revisiting library favourites. The multichannel mix of Blue Man Group’s Mandelgroove, from the Audio DVD-A release, proves even more gloriously immersive than I remember. Come back DVD-A, all is forgiven...

When using HDMI, there’s a Transport function to cut the power supply to the analogue audio transformer circuit; with only the digital circuitry powered, there’s a claimed benefit in HDMI signal-to-noise ratio.

I am not worthy
Pioneer has produced something uniquely special with
the UDP-LX800. This BD beast sets a new standard for build quality and AV performance, combining peerless video replay with sensational sound quality. In fact, I’d argue no UHD player comes close to the UDP-LX800
in terms of musical performance, and that includes the Oppo UDP-205. This is unquestionably an audiophile-grade component.

The only shortfall in comparison with its more affordable rival, the Panasonic DP-UB9000, is (now that HDR10+ compatibility has been promised) the streaming media apps. But this isn't an issue given that streaming services are pretty much ubiquitous on other devices.

In every sense, the UDP-LX800 is a phenomenal Ultra HD Blu-ray player. Worship one today.

Verdict

Pioneer UDP-LX800
£2,200
www.pioneer-audiovisual.eu

We say: This reference-grade UHD flagship player currently has no equal. Offering superb video performance and universal audio support, it's sensational.

Performance: 5/5
Design: 5/5
Features: 4.5/5
Overall: 5/5

Specification

3D: Yes
Ultra HD: Yes. HDR10; Dolby Vision (and HDR10+ via future firmware
Upscaling: Yes. 2160p
Multiregion: No. Region B BD/R2 DVD
HDMI: 2x outputs (one audio only)
Mutichannel analogue: No
Digital audio: Yes. Optical/coaxial outputs
Ethernet: Yes
Built in Wi-Fi: Yes
SACD/DVD-A: Yes/Yes
Dimensions: 435(w) x 131(h) x 339(d)mm
Weight: 13.8kg
Features: Balanced XLR stereo outputs; ESS SABRE ES9026 PRO DACs; 2 x USB; RS-232C control; DLNA media playback (MP3, WMA, ALAC, AIFF, WAV and FLAC to 24-bit/192kHz; DSD 2.8MHz/5.6MHz; AVI, JPEG, MPEG); display screen including MaxFALL and MaxCLL; PQLS (Precision Quartz Lock System) jitter reduction
